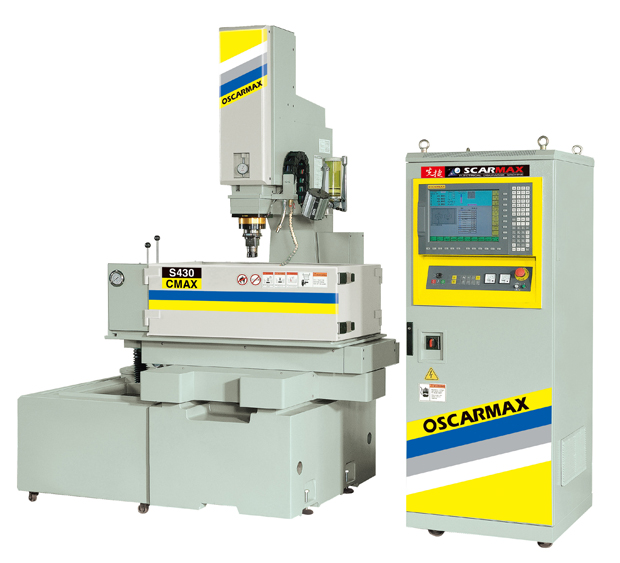

Die-sinker machine

Product ID: S430 CMAXInquiry

Description

CMAX Type of EDM machine , able to control 6 axes [C axis(3R or EROWA) . Rotary table(A. B axis)], automatic tool changer is availble[4 tools. 6 tools 8tools 12 tools 16tools 20 tools]

1. Highly rigid structure.

2. Tough cast iron with quenched treatment to ensure machine bench's precision and steadiness.

3. Heat treated work bench surface featuring high hardness and wear resistance.

4. Three axes with optical scale of 0.001 mm resolution.

5. Software, hardware and mechanical limit for multiple protection and high mechanical safety.

6. Feedback servo absorption system for reduced inertia and improved servo machining steadiness. Together with high rigidity bench this machine features more stable large mold surface machining servo and more uniform machining surface.

7. High speed machining circuit capable of fast and super fine machining for workpieces of different substances including nut molds (HRA88 or above), titanium, aluminum, and steel molds.

8. Micro-computer coke detector to monitor and rapidly block abnormal arc wave during machining as well as to ensure machining safety and mold quality.

9. Machining in IPS586, 32bit, CF card, 128MB and 3D motion modes.

10. Multi-stage machining up to 999 stages.

11. Features multiple comprehensive functions including: multi-level chip removal height, time based machining completion setup, completion percentage setup, original track reverse trip, coke activated mold return, error message and log during machining for troubleshooting and maintenance.

12. Offline machining file editing function .

13. Electronic hand wheel assisted mold calibration and shift for easy and fast operation .

14. Up to 100 coordinates groups (A01~A100).

15. Up to 999 machining parameters S codes (S01~S999).

16. Auto P codes editing in accordance with substance including: copper VS. steel, graphite VS. steel, graphite VS. aluminum, graphite VS. titanium, copper VS. copper, steel VS. steel, graphite VS. tungsten steel, copper VS. tungsten steel, and copper VS. aluminum.

17. Multiple axial machining including: XY Z-, XY Z+, YZ X-, YZ X+, ZX Y-, and ZX Y+. This enables full dimension machining together with E code (and optional C and A/B axis accessory).

18. The E code features 2D, 3D, straight line shift positioning, mold calibration, compensation, tool replacement, linear spiral, equal-gap dome, cylindrical track, circle track gradient spiral circle, diagonal loop, intra- and extra-circle sphere machining, square/round taper, ZC Star reaming, multi round holes, incremental displacement, multi square holes, multi linear holes, and bottom inclination machining.

19. The E code graphical preview function displays machining path

20. Features track machining function

21. OB machining mode: XYZ/XT/XZY/XZ/YZX/YZ/matching circle/square/concentric circle/concentric square/union jack pattern/cross/hexagonal

Specification

STANDARD ACCESSORIES :
  • X, Y, Z, double nuts nuts axes ballscrews.
  • X, Y, Z axes linear guides.
  • X, Y, Z, axes digital readout in 0.001mm.
  • 14” CRT.
  • Auto fire extinguisher.
  • Halogen work lamp.
  • Clamping plate.
  • Levelling pad.
  • Flushing nozzle.
  • Patented electrode holder.
  • Paper filter.
  • Drill chuck.
  • Tool box.
  • M.P.G.
OPTIONAL ACCESSORIES:
  • C axis.
  • Auto tool changer.
  • Dielectric cooler.
  • Permanent magnetic table.
  • Paper filter.
  • EZ-spark for harden workpiece.
  • GM CODE.
Addpting C5 class high accuracy double nuts ballscrews:
  • XY axes dia. 32mm for models: S430/S, S550 & S645.
  • XY axes dia. 40mm for models 40mm: S1055
  • X axes dia. 40mm, Y axis dia. 32mm for modles S1660, S1860
Adopting Ultra Wide Linear Guides:
  • XY axes width:30mm & 2 blocks for models S430/S, S550.
  • XY axes width:35mm & 2 blocks for models S645, S1055.
  • XY axes width:45mm & 3 blocks for models S1660, S1860.
EXCELLENT FUNCTIONS & SIMPLE OPERATION:
  • Dialogue operation for easy understanding.
  • Graphic display.
  • Built-in complete machinning codes no#: Scode & E code.
  • Call out sub-programs for easy edition.
  • Auto zero set after edge finder completed.
  • Offering RS-232 om like to down load programs.



Industrial purpose VGA color moniter for free interferce and longer life.


C AXIS FUNCTION (OPTION):


超強完整的CNC功能:

Feature


  • High sensitive & fast response servo system.
  • Software, hardware and mechanical limits switch provide comprehensive safety guards on the machine.
  • Table surface is heat treated to avoid scratching.
  • Constructed of rugged cast iron, quench treated for constant accuracy.
  • Digital readouts with 0.001mm resolution.

Easy operation on X, Y, Z and C axis movement via remote controller.

Humanistic handwheel (MGP) & simple mold alignment.
Minimum movement unit: 0.001mm.


FEATURES:
EZ-SPARK: FASTER! LOWER WEAR!
For harden workpiece sparking circuits, available for all oscarmax series. (Option)
Conversational programming for easy learing and operation.
Clear concise and well organized desplay.
A.T.C.: with electrode protection sensor, insufficient air pressure sensor.



High sensitive & fast response servo system:

Rigid construction.

X.Y.Z. axes C5 CLASS double nuts ballscrews.



X, Y, Z axes linear guides.

Up/ Down type manual worktank door for model: S1055
Up/ Down type hydraulic worktank door for model: S1660, S1860
Extra larger worktank adopt swirling door but not up/ down type door.
Pre-tension C5 class high accuracy double nuts ballscrews, 3 supports & taper type high precision bearings to ensure free backlash & smooh movement.
Grease lubricator ensure smooth movement & longer life.

Specification Table

SPECIFICAIONS:

ITEM \ MODEL UNIT S325 S430S S430 S550 S500 S645 S860 S1060 S1270 S1470 S1675 S1880 S2010 S2210
Work tank
(L x W x H)
mm
(inch)

850(34)
550(22)
340(13)

970(38)
550(22)
350(14)

970(38)
550(22)
350(14)

1,200(47)
690(27)
425(17)

1,260(50)
780(31)
520(20)

1,500(59)
940(37)
520(20)

1,700(67)
1,100(43)
615(24)

1,900(75)
1,100(43)
615(24)

2,100(83)
1,250(49)
615(24)

2,200(87)
1,320(52)
615(24)

2,400(94)
1,320(52)
650(26)

2,600(102)
1,320(52)
700(28)

2,740(109)
1,600(63)
700(28)

2,850(112)
1,600(63)
740(29)

Work table
(L x W)
mm
(inch)

650(26)
350(14)

650(26)
350(14)

650(26)
50(14)

800(32)
450(18)

850(34)
400(16)

1,000(40)
600(24)

1,200(47)
700(28)

1,250(49)
750(30)

1,350(53)
820(32)

1,700(67)
950(37)

1,800(71)
950(37)

1,850(73)
1,000(39)

2,150(85)
1,100(43)

2,250(89)
1,100(43)

Table travel (X) mm
(inch)
300(12) 400(16) 400(16) 500(20) 500(20) 600(24) 800(31) 1,000(39) 1,200(47) 1,400(55) 1,600(63) 1,800(71) 2,000(79) 2,200(87)
Table travel (Y) mm
(inch)
250(10) 300(12) 300(12) 400(16) 350(14) 450(18) 600(24) 600(24) 700(28) 700(28) 750(30) 800(31) 1,000(40) 1,000(40)
Servo travel mm
( inch)
150(6) 300(12) 300(12) 350(14) 350(14) 400(16) 500(20) 500(20) 500(20) 500(20) 500(20) 600(24) 600(24) 600(24)
Distance between
platen & table
mm
(inch)
270(11)
~
570(22)
270(11)
~
570(22)
270(11)
~
570(22)

275(11)
~
675(26)

420(17)~

770(30)

300(12)~

700(28)

420(17)~

920(36)

420(17)~

920(36)

510(20)~

1010(40)

550(22)~

1050(41)

500(20)~

1050(41)

450(18)~

1050(41)

660(26)~

1260(50)

660(26)~

1,260(50)
Max.electrode weight kgs 120 120 120 220 200 250 350 350 400 450 450 500 500 500
Max.workpiece weight kgs 550 550 700 1,500 1,800 2,000 2,400 2,750 3,000 3,800 4,200 4,800 5,500 6,000
Outside dmentions
(L x W x H)
mm
(inch)

1,400(55)
1,380(54)
2,250(89)

1,400(55)
1,380(54)
2,250(89)

1,200(47)
1,410(56)
2,250(89)

1,350(53)
1,640(65)
2,350(93)

1,700(68)
1,560(62)
2,380(95)

1,720(68)
1,800(71)
2,610(103)

3,300(130)
2,600(102)
3,200(126)

2800(110)
3000(118)
3200(126)

3,600(142)
3,100(122)
3,260(128)

2,600(102)
3,500(138)
3,200(126)

2,950(116)
3,550(140)
3,200(126)

3,150(124)
3,600(142)
3,200(126)

5,413(213)
4,523(180)
3,568(140)

5,463(215)
4,573(180)
3,568(140)

Weight kgs 1,150 1,200 1,350 1,900 2,800 3,600 5,000 5,500 6,000 8,000 8,300 8,500 12,000 13,000



DIELECTRIC UNIT:

ITEM \ MODEL S325 S430S S430 S550 S500 S645 S860 S1060 S1270 S1470 S1675 S1880 S2010 S2210
Capacity L 350 380 350 550 850 1,200 1,573 1,770 2,063 2,288 2,626 3,015 3,748 4,162
Weight kg Built-in 160 200 300 350 450 500 550 600 700 750 850 950
Outside dimensions
(L x W x H)

L
W
H

Built-in

1,010(40)
760(30)
410(16)

1,200(47)
1,000(39)
460(18)

1,520(60)
1,000(39)
560(22)

1,905(75)
1,100(43)
560(22)

2,200(87)
1,300(51)
580(23)

2,300(91)
1,400(55)
580(23)

2,500(98)
1,500(59)
580(23)

2,600(102)
1,600(63)
580(23)

2,800(110)
1,400(55)
700(28)

3,000(118)
1,500(59)
700(28)

3,150(124)
1,750(69)
710(28)

3,400(134)
1,800(71)
710(28)

Outside dimensions
(L x W x H)
kg Built-in


OPWER SUPPLY UNIT:

POWER SUPPLE UNIT UNIT 30A 60A 90A 120A 180A
Max. machining current A 30 60 90 120 180
Max. power input KVA 3 4.5 8 12 18
Max. removal ratio mm³/min 250 430 700 900 1,500
Min. electrode wear ratio % 0.15 0.15 0.15 0.15 0.15
Best surface roughness um/Ra 0.18 0.18 0.18 0.18 0.18
Outside dimensions
(L x W x H)
mm
(inch)

820 x 620 x 1,700
(32x24x67)

820 x 620 x 1,700
(32x24x67)

820 x 620 x 1,700
(32x24x67)

820 x 620 x 1,700
(32x24x67)

820 x 620 x1,700
(32x24x67)x2

Weight KGS 300 320 350 380 680
  • All specifications and designs are subject to change without notice.
  • Larger models are avallable as requests.
